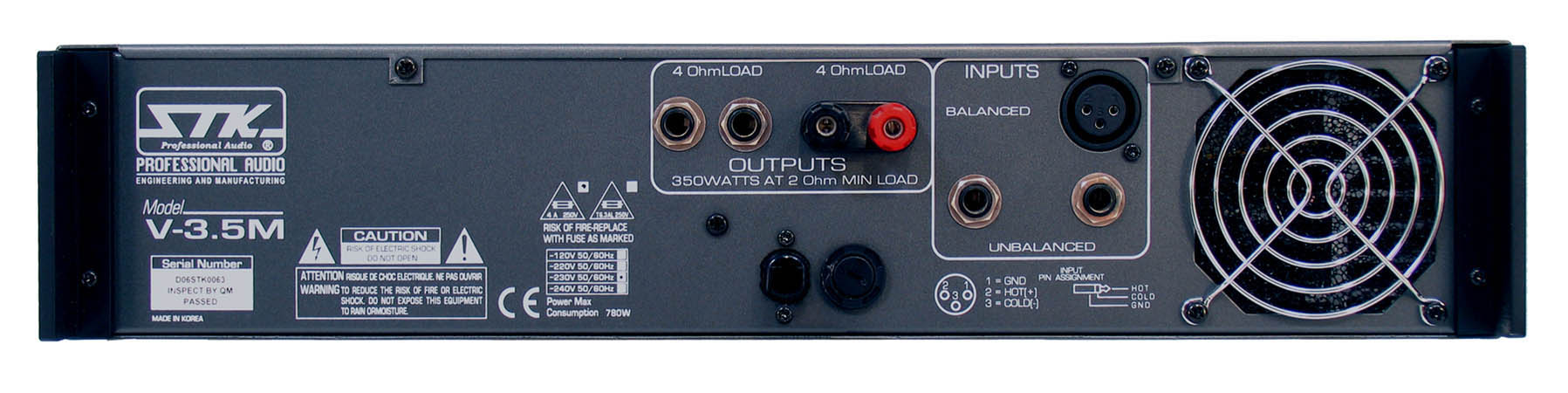

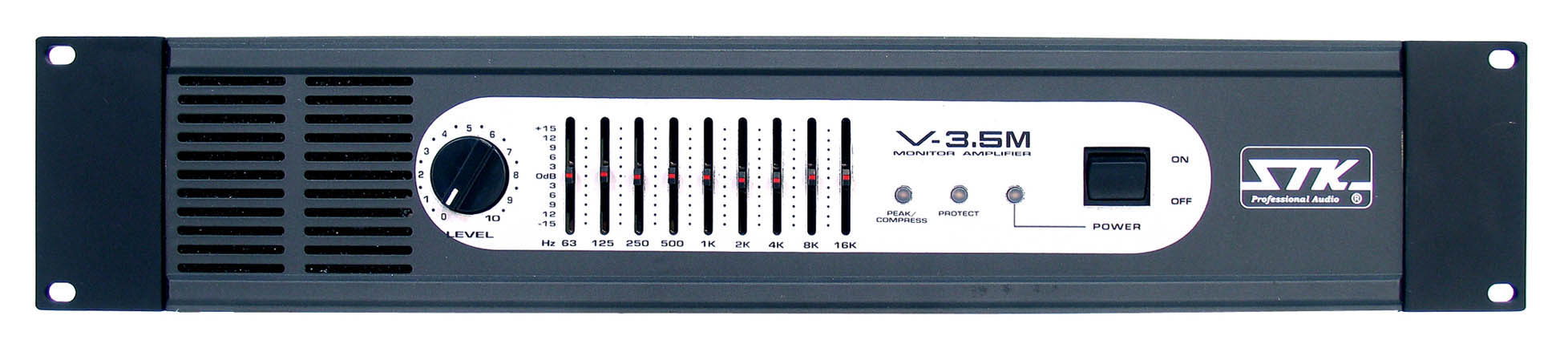

  Front View / Rear View
  Manual / Dimensions

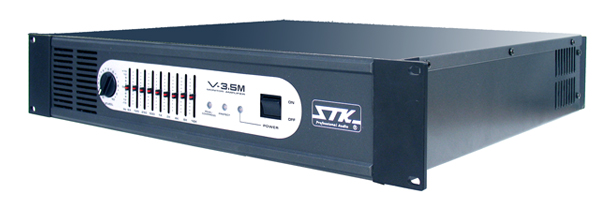

The V3.5M is a high quality,monophonic power amplifier with built-in nine band graphic equalizer for sound reinforcement and installation. The V3.5M is also available use to bass Guitar Power amplifier.

  • A minimum load as low as two Ohms
  • Built-in opto control level limiter
  • FET control quiet power on/off muting circuit.
  • AC primary controlled full protection circuitry
  • 350W at 2 Ohm 0.05% THD 20Hz~30kHz
  • The front face, soft feeling rubber coated, 2U space.
Model V-3.5M
Single Mode (both channel driven) Continuous Average Output
FTC @ THD+N=0.1%, f=20Hz~20kHz
8 ohm 110W
4 ohm 210W
2 ohm 320W
EIA @ THD+1=1%, f=1kHz
8 ohm 120W
4 ohm 220W
2 ohm 330W
Power Bandwidth
(Ref. 1kHz, THD+N=0.1%,+0/-1dB)
(Ref. 1kHz,f=20Hz~20kHz)
Frequency Response
(Ref. 1kHz, 1watt output, +0/-1.5dB)
(60Hz:7kHz, 4:1 Half power)
2-4-8 ohm ≤0.1%
Residual Noise
(20Hz~22kHz LPF,Att.min)
S/N Ratio
(Filter:A-Weighting, RMS)
Damping Factor
(RL=8Ω, f=1kHz)
Input Sensitivity (Att. max)
2 ohm +4.0 dBu
4-8 ohm +5.1 dBu
Voltage Gain(ATT.max) 27.64dB
Output Circuitry AB
Input Impedance 10kΩ(Unbalance),20kΩ(Balance)
Comp Sensitivity +1, -0.5 at +4dbm to +20dbm
Graphic Equalizer 63. 125. 250. 500HZ, 1K, 2K, 4K, 8K, 16K
Controls AC Switch, Input gain Control knobs
Connectors XLR jack, 1/4" TRS
Touch-Proof binding posts, Speakon jack
Indicators Power(Green),Comp(Amber)Protect(Red)
Protection Circuits 1)Short Circuits
2)Current Limit
3)DC detection
5)Turn On/Off muting
6)AC Line fuse
Fan Circuit Single Fans Variable low speed (50℃),
Varable, High speed(55℃)
Power Consumption 680VA
DIMENSION 480mm X 88mm X 247mm
Weight 12kg / 26.45 Ibs
*Specifications Subject to change without notice.
