| Model |

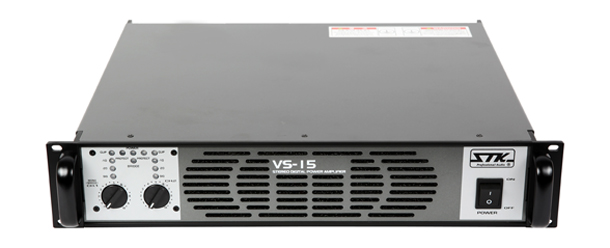

VS-15 |
| Stereo Mode (both channel driven) |
Continuous Average Output Per Channel |
| FTC @ THD+N=0.1%, f=20Hz~20kHz |
Ch1 |
Ch2 |
| 8 ohm/Stereo |
430W> |
430W |
| 4 ohm/Stereo |
740W |
740W |
| EIA @ THD+N=1%, f=1kHz |
|
| 8 ohm/Stereo |
450W |
450W |
| 4 ohm/Stereo |
750W |
750W |
| Bridge Mono Mode (both channel driven) |
|
| FTC @ THD+N=0.1%, f=1kHz |
|
| 8 ohm/Bridge |
1450W |
| 4 ohm/Bridge |
|
Power Bandwidth
(Ref. 1kHz, THD+N=0.1%,+0/-1dB) |
20Hz~30kHz |
THD+N
(Ref. 1kHz,f=20Hz~20kHz) |
≤0.05% |
Frequency Response
(Ref. 1kHz, 1watt output, +0/-1dB) |
20Hz~40kHz |
IMD(SMPTE4:1)
(60Hz:7kHz, 4:1 Half power) |
|
| 4-8 ohm/Stereo |
≤0.1% |
| 8 ohm/Bridge |
≤0.1% |
Crosstalk
(RL=8Ω, Half power, Att.Max 600Ω shunt) |
≥63dB, 1 kHz |
Residual Noise
(20Hz~22kHz LPF,Att.min) |
≥70dB |
S/N Ratio
(Filter:A-Weighting, RMS) |
≥104dB |
Damping Factor
(RL=8Ω, f=1kHz) |
≥350 |
| Input Sensitivity (Att. max) |
|
| 4 ohm/Stereo |
+4.0 dBu |
| 8 ohm/Bridge |
+5.1 dBu |
| Voltage Gain |
34dB |
| Output Circuitry |
AB |
| Input Impedance |
6kΩ(Unbalance), 12kΩ(Balance) |
| Controls |
|
| Front panel |
AC Switch,Ch1 and Ch2 gain control knobs |
| Rear panel |
Stereo/Mono Bridge,Clip limiter(option), HPF Switch |
| Connectors |
|
| Input |
XLR jack, 1/4" TRS jack |
| Output |
XLR Male Jack(In put Through)
Speakon Jack, 5-Way binding Post |
| Indicators |
Power(Green),Protect(Red),Clip(Red),
Mono Bridge(Green)
Bar Graph In/Out level |
| Protection Circuits |
1)Short Circuits
2)Current Limit
3)DC detection
4)Thermal
5)Turn On/Off muting
6)Power supply shutdown
7)AC Line fuse |
| Fan Circuit |
Two Fans Variable Low Speed(50℃),
High speed(60℃) |
| Power Consumption (1/3 power) |
850Watts |
| DIMENSION |
480mm X 88mm X 449mm |
| Weight |
11.78 kg / 25.97 Ibs |
