   LMS Line Series

Recently STK has designed new LMS Line series line array for the most demanding concert and installation audio professionals from advanced users, the LMS Line series speaker system provided economic range medium and small size line array performance into an and ultra compact package measuring less than 210mm(H) x 614mm(W). LMS line fits difficult venues with height or sightline restrictions that limit the placement and size with limit the amounts of the array. It also eases transport requirements to avoid rising fuel costs.
The systems are also designed specifically to ground stacked array system, easy and simply build-up by use 2 of standard 35mm poles. STK Lms Line series is a complete system considering of line array,subwoofer, signal processing,amplification with very high performance,reliable and ease of deployment.

Recommended power amplifiers
  1. Array system for program power handling.
    • V-6(2 x 300W) : each channel connect to HF 16 ohm input LMS -62P, use 2 or 3 of LMS-62P for each CH.
    • VS-2004(4 X 600W), VS-15(2 X 750W) : each channel connect to LF 4 ohm input LMS-62P, use 1 of LMS-62P for each CH.
    • VS-40 (2 X 2000W) : each channel connect to LF 16 ohm input LMS-62P, use 3 ro 4 of LMS-62P for each CH.
    • VS-2004( 2 X 1200W by Bridge) : each channel connect to Subwoofer LMS-6015P, use 1 of LMS-6015P for each CH.
    • VS-40( 2 X 2000W) : each channel connect to Subwoofer LMS-6015P, use 2 or 3 of LMS-6015P for each CH.

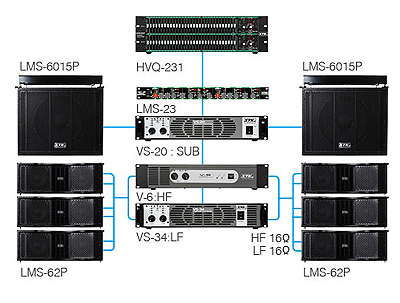

  2. Array system for RMS continious power handling.
    • V-6(2 x 300W) : each channel connect to HF input LMS -62P, use 2 or 3 of LMS-62 for each CH.
    • V-9(2 X 450W) : each channel connect to LF 4 ohm input LMS-62P, use 1 of LMS-62P for each CH.
    • VS-34(2 X 1700W) : each channel connect to LF 16 ohm input LMS-62P, use 3 of LMS-62P for each CH.
    • VS-20( 2 X 1000W) : each channel connect to Subwoofer LMS-6015P, use 1 of LMS-6015P for each CH.

Recommended array
  • Medium small range : 3(or 4) of LMS-62P with 1 of LMS-6015P for each suspend line.
  • Medium Large range : 6 units LMS-62P with 2 of LMS-6015P for each suspend line.
  • Out door Medium Large range : Flay 9 of LMS-62P and ground stacked 3 to 6 of LMS-6015P for each array line.

LMS Line Fly System : "Program Power Operating"


LMS Line Fly System : "Continious Power Operating"


LMS Line Ground Stacked System : "Program Power Operating"

LMS Line Ground Stacked System : "Continious Power Operating"
Array Configurations
The followings table provides information regarding the maximum number of LMS-62P line array elements and LMS-6015P subwoofers that may be suspended using various configurations of the available suspension accessories. The calculations for this table are based on a 10 : 1 design factor.

Array frame Max LMS-62P in array Max LMS-6015P in array
B6015LMH 9 0
  6 2
  3 3
  0 4

Note: While the LMS will accommodate splay angles of up to 10 degree,
the best performance will be obtained by keeping all splay angles to less than 6 degree.
Use the aiming points of the top and bottom speakers and manually fill in the rest so as to create either an arcuate or spiral array.
