   SP-605CM

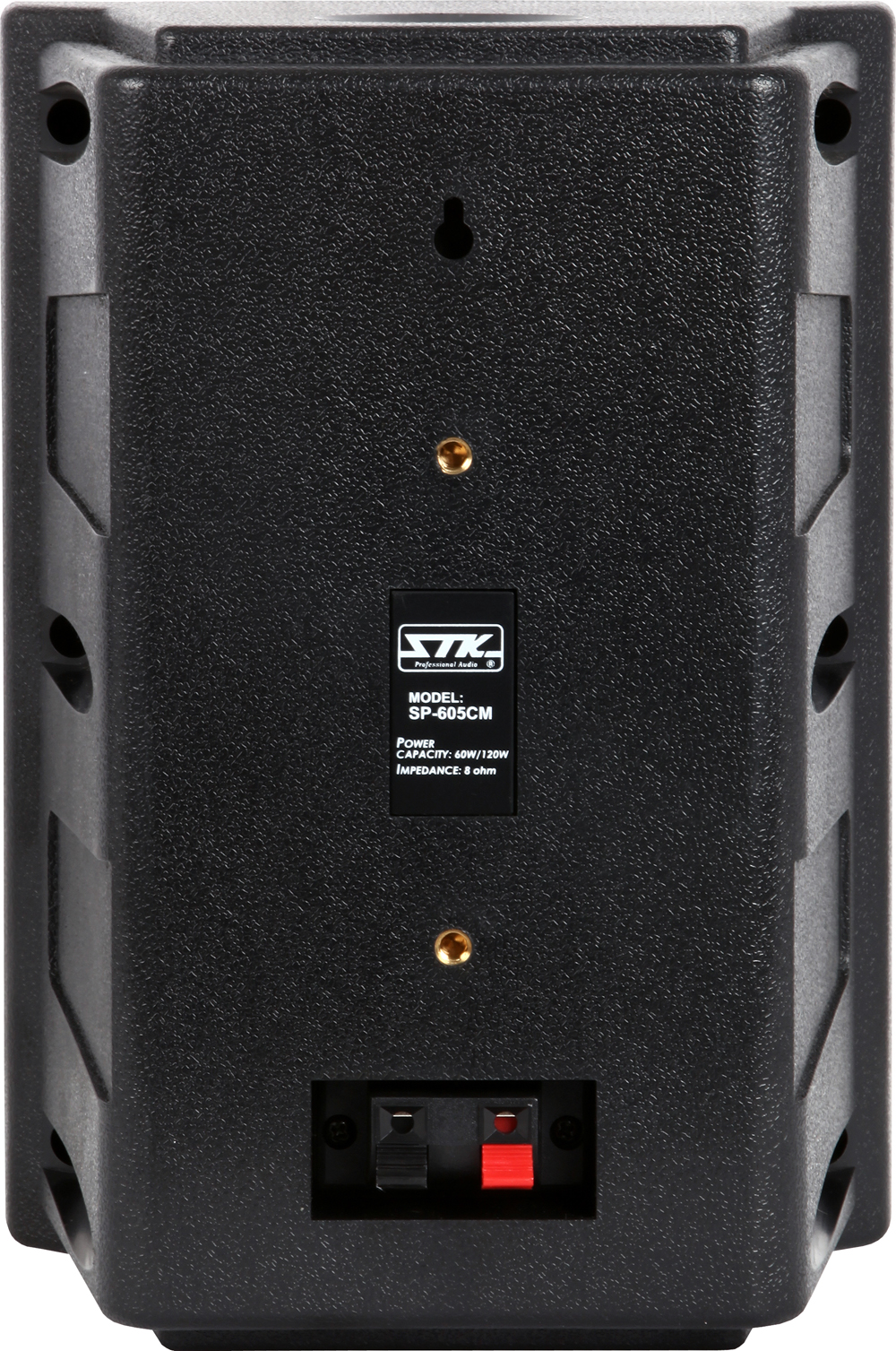

  Front View / Rear View
  Manual / Dimensions

The SP-605CM incorporates a 6 1/2”low frequency loudspeaker with a 1” foam edge paper cone tweeter,makes full-range frequency response its an excellent choice for moderately large venues, providing superior dynamic performance and a smooth roll-of down to 75Hz.
The SP-605CM is ideal for any installation requiring professional control monitor performance a compact source.


SPECIFICATIONS
Model SP-605CM
PHYSICAL SPECIFICATION
Frequency Response
±3 dB 85Hz~19kHz
-10 dB 75Hz~20kHz
Power capacity Program 120 Watt
Power capacity Pink 60 Watt
Recommended Amplifier Power 60 Watt to 120 Watt into 4-8 ohms
Norminal dispersion 100 ° Concial
Sensitivity 96dB SPL
Norminal Impedance 8 ohm
Crossover frequency
Components LF 6 " 1/2"240watts peak
HF 1" Cone tweeter
Mounting Brakerts U-Bracket " B605CMU"
Finish Black
Demensions
( ±0.13 inch / ±3 mm)
Height: 280
Front width: 200
Rear width: 137
Depth: 198
Shipping/CBM 0.019/0.083(4pcs 1carton)
Net weight 2.6 kg
Shipping weight 3.3 kg
*Specifications subject to change without notice.
