   SP-253N

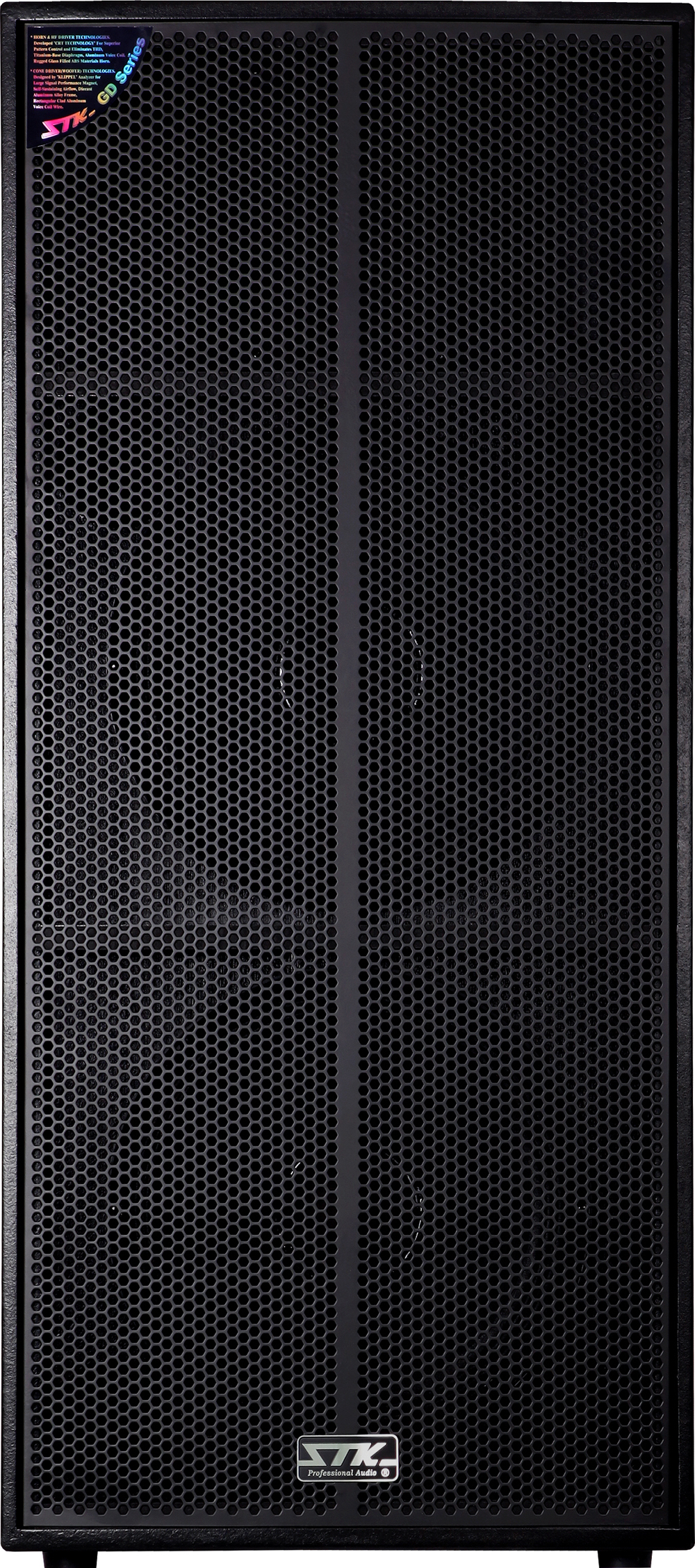

  Front View / Rear View
  Manual / Dimensions

The SP253N full range two-way or Bi-Amp system trapezoidal enclosure with dual 15” SK 15500 Woofers tight, punchy bass.
For applications that require extremely high output and thundering bass, use the SP253N on the top of the SP118S subwoofer.

  • Two-Way passive full-range system.
  • The one SK100MD 3” exit compression drivers on a SABS1 horn.
  • The barrier strip internal mode selector is Bi-Amp mode changeable.
  • Ultra tough, the scratch proof warnex texture coated.
  • An internal passive crossover network frequency is 1.5Khz 12dB/Octave.
  • The enclosure construction: By STK “STANDARD”
  • Ultra tough, the scratch proof warnex texture coated.
  • Impact-resistant perforated metal grill(1.5mm)with weather proof powder coated.
  • “SCP” STK caster option.

SPECIFICATIONS
Model SP-253N
PHYSICAL SPECIFICATION
System configuration 2-Way Full Range
LF system & Loading Dual SK 15500 15" woofer, Vented
HF system & Loading One 3 "Voice coil compression on SABS 1 horn.
Operating Mode Passive or BI-Amplified
Controls Powering Mode select strip
Enclosure Material Plywood,MDF
Enclosure Finish Black warnex texture coated
Connectors Two neutrick speakon
Grille Powder coated perforated steel
Optional accessories 1. STK caster "SCP80"(80mm wheel)
2. STK caster "SCP100"(100mm wheel)
Demensions
( ±0.13 inch / ±3 mm)
Height: 1220
Front width: 550
Rear width: 397
Depth: 510
Trapezoid angle(degrees) 18
Shipping/CBM 0.468
Net weight 60.15 kg
Shipping weight 63.45 kg
TECHNICAL SPECIFICATION
Frequency Response
±3 dB 50Hz ~ 19kHz
-10 dB 35Hz ~ 20kHz
Recommended High-Pass Frequency 30Hz
High-Pass Frequency
Axial Sensitivity(dB SPL, 1 watt @ 1m) Full Range Passive 101
Nominal Input Impedance(ohms) Full Range Passive: 4
LF: 4
HF: 8 or 16
Power Handling, Watts
(Continuous/Program/Peak) Full Range Passive: 900/1800/3600
(Continuous) LF: 800
(Continuous) HF: 120
Max Calculated SPL (Referenced to 1 m) 136.0
Full Range Passive Peak 135
Full Range Long Term 130
Norminal disperson(degrees @ -6dB)
Horizontal 60
Vertical 40
*Specifications subject to change without notice.
