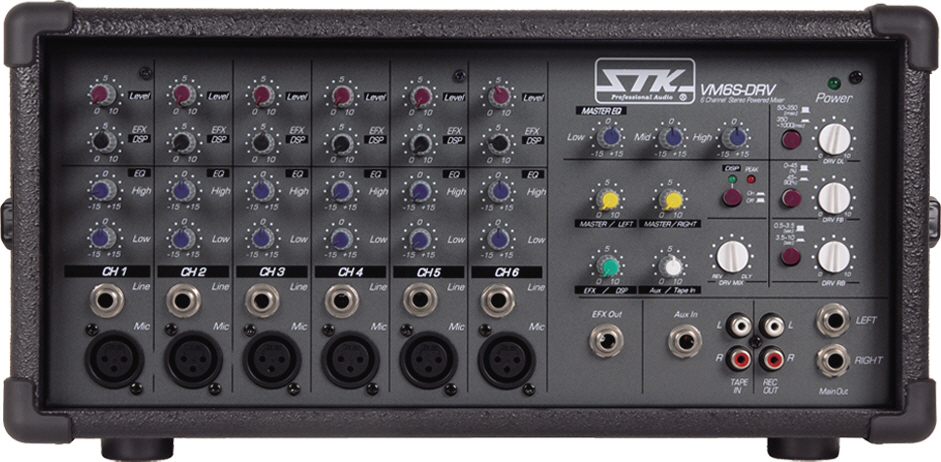

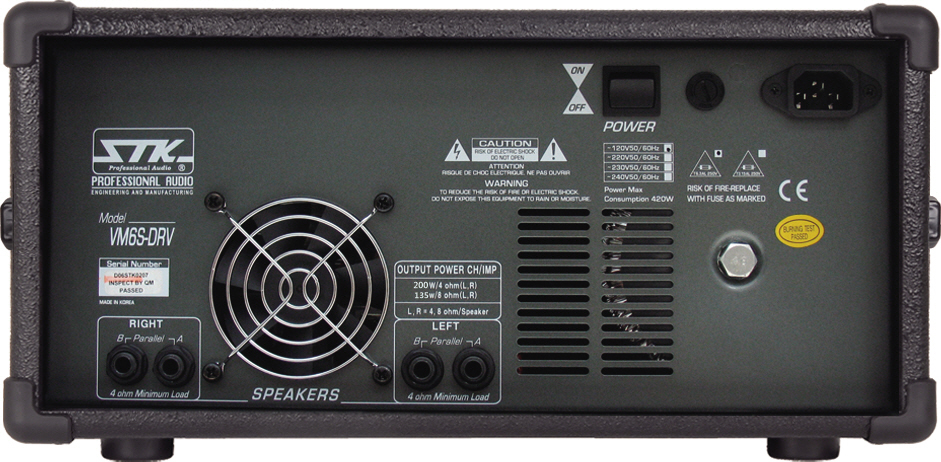

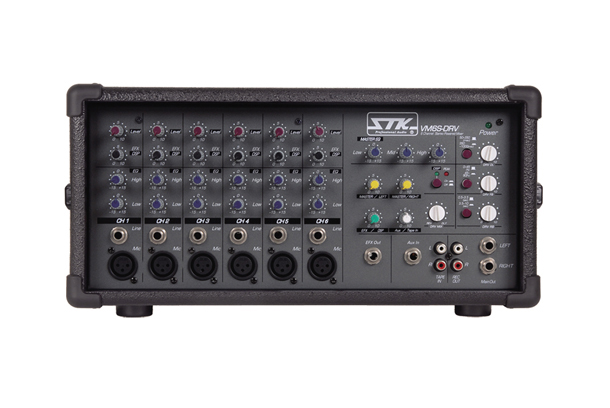

Front View / Rear View

Manual / Dimensions

The VM6S-DRV is an best buy when more Mic inputs and stereo power outputs needed.
The features and functions in a compact, easy to use format. simply add more power amps and speakers and your ready for larger venues.

Rugged warnex coated encloser
Available rack mount version.
6CH 16 input configurations.
200W power(100w x 2) 0.05% THD 20Hz-30kHz.
“STK STANDDARD” circuit board design .
3 band stereo master EQs low noise, no cliping design.
Ultra-realistic sound with 20kHz response dual(REV/DELAY) variable digital effects.
FET control Quiet power On/Off muting circuit.
Lowest in-rush trodial X-formers and T-tunnel design heatsink cooling.

SPECIFICATIONS

Model	VM6S-DRV
Configuration
Power(EIA)
4 ohm load per channel	110W + 110W
8 ohm load per channel	80W + 80W
Rated Power(20-20kHz)
4 ohm load	100W + 100W
8 ohm load	70W +70W
Distortion (THD & SMPTE IND; 20Hz to 10kHz)
Mic input to main mixes output	0.01%
Mic input to power amp output	0.05%
Inputs (all 1/4” TRS are Bal./Unbal.except*)
Mono mic/line	6 XLR Jack
Stereo line	N/A
Tape in	Stereo RCA Jack
AUX Returns/AUX In(VP150 ONLY)	TS 1/4” Phone Jack
Outputs (all 1/4” TRS are Bal./Unbal.except*)
Speaker Outputs	TS 1/4”
Main Mix(line)Level	1 TS 1/4”, L,1TS 1/4” R
Main Mono(Subwoofer)	N/A
Aux Sends	TRS 1/4”, 1 EFX
Tape L/R Stereo	Stereo RCA
Controls Channel
AUX Send Control	1 EFX
Constant Pan Control
10dB Input PAD	N/A
Controls Master
Digi EFX	Dual Variable 1 REV Control(0.5~10 sec) 1 DELAY Control(50~1000 msec) 1 FEEDBACK Control(0-90%) 1 DR MIXING Control(0~100%)
Digi EFX Control	On/Off, LED Level Set
Digi EFX Buss Control	Yes
Aux In Control	Yes
7-Band Graphic Equalier	Yes(3 Band Type)
AUX Send Master
Power AMP Assign	N/A
Foot Pedal EFX Jack	Yes
Noise
Equivalent input noise	-110 dB
Residual output noise(SP OUT)	-70 dB
Residual output noise(MAIN OUT)	-97 dB
Crosstalk
Adjacent inputs or input to output	60 dB
Frequency Response
20Hz to 40kHz(Mic Pre Section)	+0, -1.5dB
20Hz to 30kHz(Power Amp Section)	+0, -1dB
Maximum Levels
Mic Preamp Input	+4 dBu
All Other Inputs	+18 dBu
All Mixer Outputs	+18 dBu
Impedances
Mic Preamp Input	4k Bal.
All Other input	＞10k
Line Input	4k
CH Equalization	2 Band
Low EQ	100 Hz +/-15dB
Mid EQ	N/A
Hi EQ	10kHz +/-15dB
Power Requirements	350Watts
Dimension(WxHxD)	415 x 197 x 235
Shipping/CBM	0.0504
Net Weight	9.74kg
Shipping Weight	11.22g

*Note: Specifications subject to change without notice
