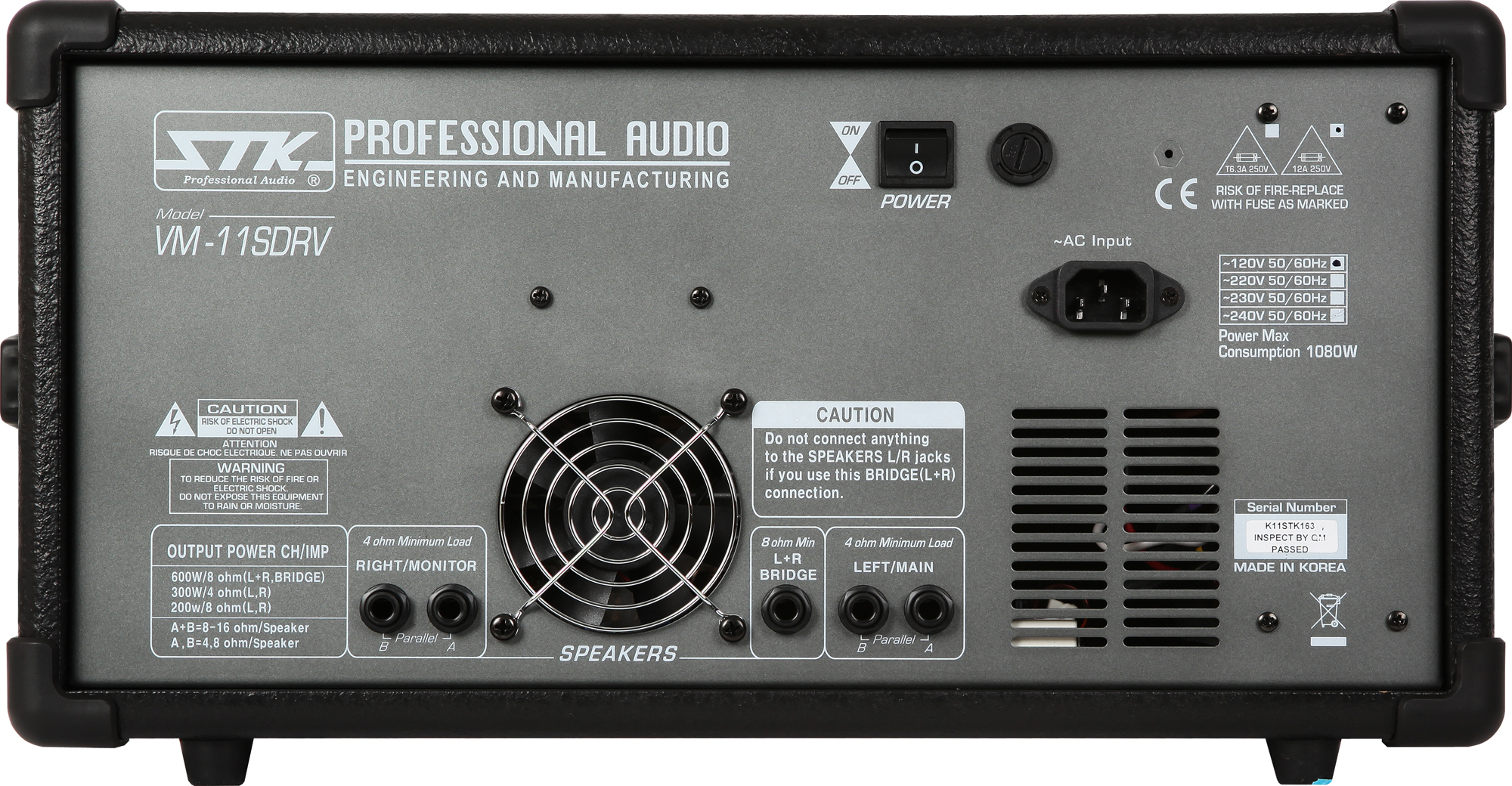

The VM11S-DRV offers big system features in a economical, comapct package.
Perfect for bands, churches, assembly rooms, and general PA.
- Rugged warnex coated encloser
- Available rack mount version, steel 4-2/3U space
- 11CH 23 input configurations.
- Dual 300W power with output level metering 0.05% THD 20Hz-30kHz
- The mic preamps extra 10dBu input handling capacity
- 8 mixer output configurations
- The pan pots constant loudness control and PANASONIC made.
- “STK STANDDARD” circuit board design
- Dual precise G.EQs low noise, no cliping design
- Ultra-realistic sound with 20kHz response dual(REV/DELAY) DSP
- variable digital effects.
- FET control Quiet power On/Off muting circuit.
- Lowest in-rush trodial X-formers and T-tunnel design heatsink cooling.
|
|
| |
| SPECIFICATIONS |
 |
|
|
| Model |
VM11S-DRV |
| Configuration |
|
| Power(EIA) |
|
| 4 ohm load per channel |
330W + 330W |
| 8 ohm load per channel |
220W + 220W |
| Rated Power(20-20kHz) |
|
| 4 ohm load |
300W + 330W |
| 8 ohm load |
200W + 200W |
Distortion
(THD & SMPTE IND; 20Hz to 10kHz) |
|
| Mic input to main mixes output |
0.01% |
| Mic input to power amp output |
0.05% |
Inputs
(all 1/4” TRS are Bal./Unbal.except*) |
|
| Mono mic/line |
7 + 2 XLR Jack |
| Stereo line |
4 1/4" TRS Phone Jack |
| Tape In |
Stereo RCA Jack |
| AUX Returns |
TS 1/4” Phone Jack |
Outputs
(all 1/4” TRS are Bal./Unbal.except*) |
|
| Speaker Outputs |
TS 1/4” |
| Main Mix(line)Level |
1 TS 1/4”, L,1TS 1/4” R |
| Main Mono(Subwoofer) |
TS 1/4” |
| Aux Sends |
TRS 1/4”, 1 EFX, 1 Mon |
| Tape L/R Stereo |
Stereo RCA |
| Controls Channel |
|
| AUX Send Control |
1 EFX, 1 Mon |
| Constant Pan Control |
Yes |
| 10dB Input PAD |
Yes |
| Controls Master |
|
| Digi EFX |
Dual Variable
1 REV Control(0.5~10 sec)
1 DELAY Control(50~1000 msec)
1 FEEDBACK Control(0-90%)
1 Delay and Reverb MIXING Control(0~100%)
|
| Digi EFX Control |
On/Off, LED Level Set |
| Digi EFX Buss Control |
1 + 1 Monitor |
| Aux In Control |
1 + 1 Monitor |
| 7-Band Graphic Equalier |
1 Left/Main, 1 Right/Monitor |
| AUX Send Master |
Yes(1 Monitor) |
| Power AMP Assign |
L+R(Bridge)/Stereo |
| Foot Pedal EFX Jack |
Yes |
| Noise |
|
| Equivalent input noise |
-110 dB |
| Residual output noise(SP OUT) |
-70 dB |
| Residual output noise(MAIN OUT) |
-97 dB |
| Crosstalk |
|
| Adjacent inputs or input to output |
60 dB |
| Frequency Response |
|
| 20Hz to 40kHz(Mic Pre Section) |
+0, -1.5dB |
| 20Hz to 30kHz(Power Amp Section) |
+0, -1dB |
| Maximum Levels |
|
| Mic Preamp Input |
+10 dBu |
| All Other Inputs |
+18 dBu |
| All Mixer Outputs |
+18 dBu |
| Impedances |
|
| Mic Preamp Input |
4k Bal. |
| All Other input |
＞10k |
| Line Input |
4k |
| CH Equalization |
3 Band |
| Low EQ |
100 Hz +/-15dB |
| Mid EQ |
2.5 kHz +/-12dB |
| Hi EQ |
10 kHz +/-15dB |
| Power Requirements |
900Watts |
| Dimension(WxHxD) |
440 x 200 x 250 |
| Shipping/CBM |
0.0676 |
| Net Weight |
16.04kg |
| Shipping Weight |
17.78g |
|
| *Note: Specifications subject to change without notice |
|
|
