   SPM-122AP

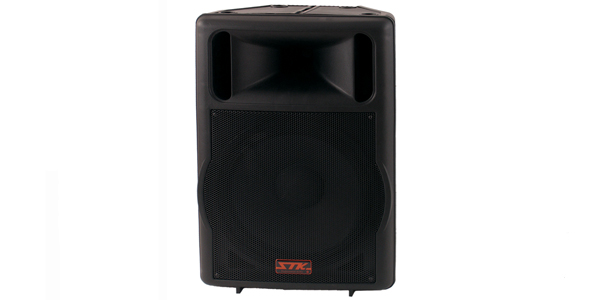

  Front View / Rear View
  Manual / Dimensions

Ultra Light,compact portable 2-way full-range 200W mix amplified trapezoidal injection molded enclosure.
The amplifier is powerful class AB output circuit for ultra light and easily stacked.
And the mixer sections similar to SPM152AP version. The SPM122AP offer specially treated “ SK12200” high grade woofers and high output horn drivers. Perfect for general-purpose institutional.

  • 2-Way full-range system.
  • Mixing control board built-in(Mic,Line Input with 3 band equailzer)
  • Built-in constant direct-loaded Horn.
  • The one 1” inch exit compression drivers on a loaded Horn with molded enclosure.
  • The internal crossover network frequency is 2.5kHz and 12dB/Octave.
  • Impact-resistant perforated steel grill.
  • Integral stand-mount adapter and carrying handle.
  • Flying eyebolt mounting points in the top and bottom.
  • 35mm pole mount receptacle on the bottom.

SPECIFICATIONS
Model SPM-122AP
ENCLOSURE SPECIFICATION
System configuration 2-Way Full Range
Components & Loading One SK12200 12” woofer, vented
Operating Mode Active
Frequency Response
±3 dB 55Hz ~ 19kHz
-10 dB 43Hz ~ 20kHz
Axial Sensitivity(dB SPL, 1 watt @ 1m) 100
Impedance(ohms) 8
Power Handling(Watts, Continuius) 200W
Power Handling(Watts, Peak) 800W
Calculated SPL Limit(Referenced to 1 m)
Peak 127dB
Long Term 121dB
Optional Accessries 1 STK Pole "SPM35130"
Optional Accessries 2 STK Eyebolt "SEB08"
Demensions
( ±0.13 inch / ±3 mm)
Height 598
Front width 426
Rear width 240
Depth 326
Shipping/CBM 0.1126
Net weight 19.16kg
Shipping weight 23.0 kg
AMPLIFIER SPECIFICATION
Output Power
8 ohm 200W
Frequency Response
20Hz ~ 30kHz
THD 20Hz~30kHz 0.05%
Hum & Noise ≥70 dB
Input Sensitivity MIC: -50dBu
CD/TAPE: 0 dBu
LINE: -10 dBu
Equalizer(+/-12dB) High: 10 kHz
Mid: 2.5 kHz
Low: 100 Hz
Damping Factor ≥200
Crossover Frequency 2.5 kHz
Input impedance 10k ohm (Balanced XLR)
Connectors Input XLR, 1/4"TRS, Stereo RCA
Connector output XLR/TS 1/4" Phone(Line out)
Power Requirements 250 Watts
Special Features 1. Peak LED, Power LED
2. Convenction Cooling
*Specifications subject to change without notice.
