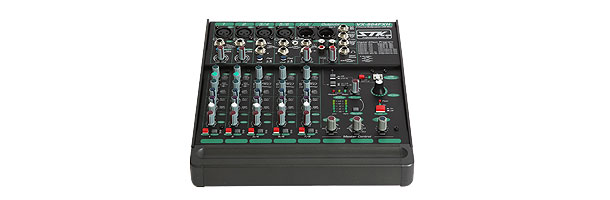

The VX-804FXH Mixers are STK new design for "U"mark level setting,every rotary,slide controls are designed for unit gain circuitry
to make no change inputs outputs signal level, this special features easy to make correct level setting with best noise structure.
The VX-804FXH also can be use for outdoor indoor events, multi media, and presentation, quickly dial your favorite Digital reverb or
delay into the mix, and also good for your key board mixer.
USB Home Studio Mixer
- 2 of XLR Mono CH + 1 XLR with 1/"4 ST Jack CH + 1 XLR with 1/8" Lap Top and 1/4" Jack CH + 2 RCA with 1/4" ST Jack CH.
- Fixed 3 band channael EQ, 48V global phantom, 75 Hz low cut filter switches, 2 Aux sends and constant loudness PAN controls.
- Each channel record bus assign to USB recording,also send to RCA jack output for individual recording
- Each channel listen control selector assign to stereo headphones and stereo control rooms for record monitoring and channel soloing.
- XLR Main L/R outputs, Stereo control room outputs,Aux/Monitor send output jack, Efx send output jack, Stereo record output jacks
- USB and CD or 2 Track playback level controls and assign select control to main or CH 7/8 stereo inputs
- 6 Program Reverb & Delay + 6 program echo karaoke sound + 4 programs chorus & flanger Digital processors
- Digi Efx level control to main L/R and select control to assign Monitor out put jack
- Heavy gauge luxury type aluminum case with handle. 6-2/3U(295mm) rack space.
- New green design for "U" mark level setting
|
|
| |
| SPECIFICATIONS |
 |
|
|
| Model |
VX-804FXH USB |
Inputs
(all 1/4" TRS are Bal./Unbal.except*) |
|
| Mono mic/line |
2+2 |
| Stereo line |
6 |
| CD/Tape |
Stereo RCA |
| Talkback |
- |
Outputs
(all 1/4" TRS are Bal./Uvbal. except*) |
|
| Main L/R Stereo |
2 BAL XLR |
| Main Mono |
- |
| Aux Sends |
2 TRS 1/4" |
| Tape L/R Stereo |
Stereo RCA |
| Sub Master outputs |
- |
| Phones |
1 TRS 1/4" |
| Utility L/R |
2 TS 1/4" |
| Channels Strips |
|
| AUX control |
1 + 1 EFx |
| Constant loudness pan control |
Yes |
| Channel Record |
Yes |
| Channel mute |
- |
| Channel Solo |
Yes(listen) |
| LED indicators |
- |
| LED indicators |
- |
| Group Bus assign switches |
- |
| Volume controls |
Rotary |
| Master Section |
|
| Digi EFX Program |
16 presets(reverb,delay,chorus,flanger)
Reverb Hall -----------------------2 selects
Reverb Room---------------------2 selects
Reverb Plate----------------------2 selects
Delay + Reverb-------------------2 selects
Karaoke----------------------------4 selects
Chorus & Reverb-----------------2 selects
Flanger & Reverb-----------------2 selects |
| Digi EFX mute & level Control |
On/Off SW. Peak LED setting |
| Digi EFX Buss Control |
1 main +1Monitor |
| 7 Band Graphic Equalizer |
- |
| Aux Send Masters |
Yes |
| Master Aux send Solo |
- |
| Stereo Aux Return |
- |
| Global Aux Return Solo |
- |
| Aux Return Assign to Sub |
- |
| Effects Ruturn to Monitor |
Yes |
| Global AFL/PFL Solo Mode |
PFL only |
| Phones/Utility Level Control |
Yes |
| Phones/Utility Matrix |
Yes |
| Faders |
Rotary |
| Select USB Routing |
Main L/R, Record |
| Select USB Playback |
MainL/R, CH7/8. |
| Built-in Power Supply |
Yes |
| BNC Lamp Socket |
- |
| Noise |
|
| Master Fader@Unity, CH.gains Down |
-86 dB |
| Master Fader@Unity, CH.gains@Unity |
-72 dB |
| Signal to Noise Ratio |
≥79dB |
| Total Harmonic Distortion |
0.007% |
| Crosstalk |
|
| Channel fader down,channels at unity |
-85dB |
| Channel muted,other channels at unity |
- |
| Mic Pre Section |
|
| Frequency response 20Hz to 60kHz |
+0 / -1.5dB |
| Maximum Levels |
|
| Mic Preamps Input |
+14dBu |
| All Other inputs |
+22dBu |
| Balanced Main Outputs |
+22dBu |
| All Other Outputs |
+22dBu |
| Impedances |
|
| Mic Preamp Input |
4.7K |
| All Other Inputs |
> 10K |
| RCA Tape Outputs |
1.0K |
| All Other Outputs |
120Ω |
| Equalization |
3 band Fixed |
| Low EQ |
80Hz ±15dB |
| Mid EQ |
2.5kHz ±12dB |
| Hi EQ |
12kHz±15dB |
| Low-Cut Filter |
18dB/oct 75Hz |
| Micriphone Preamp E.I.N. |
-129dBu |
| Power Requirements |
18Watts |
| Dimension(WxHxD) |
264x 68 x 250 |
| Shipping/CBM |
0.009 |
| Net Weight |
2.84Kg |
| Shipping Weight |
3.44kg |
|
| *Note: Specifications subject to change without notice |
|
|
