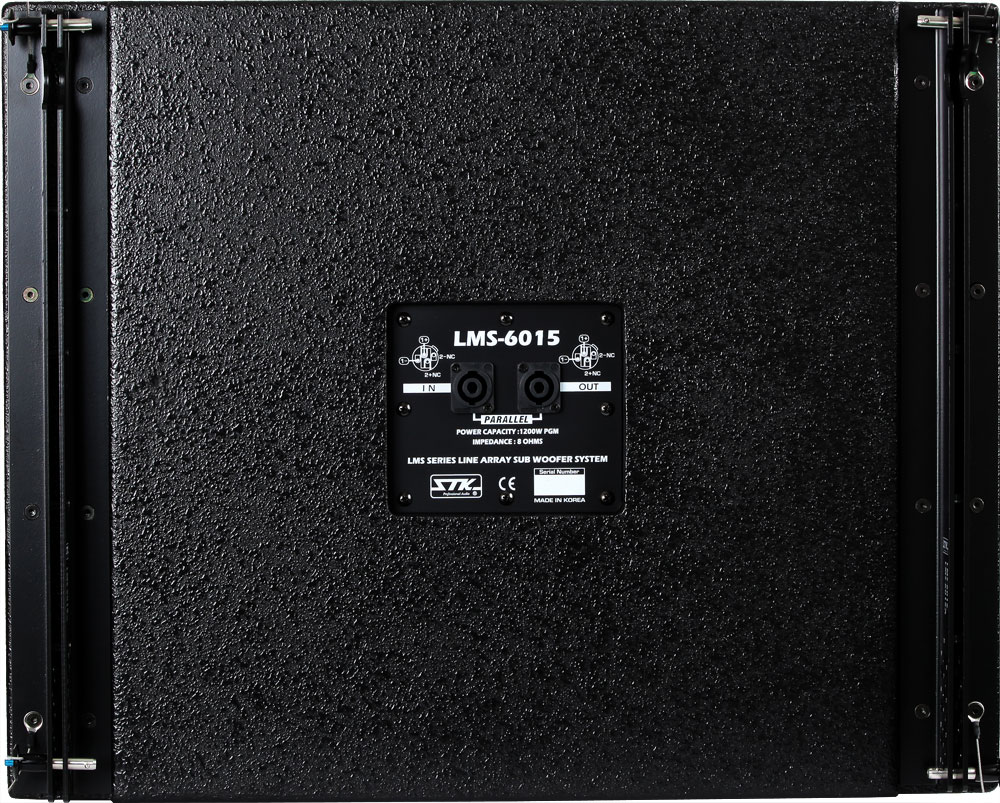

  Front View / Rear View
  Manual / Dimensions
LMS-6015P subwoofer
Passive single 15" Sub Woofer System, the systems can be readily integrated into arrays of full range LMS-62P line array elements. Ported + vented rectangular enclosure. SK 15600 15" high power transducers provide to solid sounding output.
"Used 12mm birch plywood materials by double PCS to making super-durable enclosure. High quality components with an environmentally friendly,lightweight field-repairable waterborne polymer finished with scratchproof finished suspension materials.
Combined LMS-62 and LMS-6015 arrays making suspension with optinal array frame(B6015 LMH), can also be used to ground-sacked for extended range front of house system with optional U-FRAME(B62 LMU) with 2 of SPM-35150 speaker poles.
Model LMS-6015P
Configuration Sub Woofer : Line Array
Transducer one SK15600 15"
Frequency Response (± 3dB)¹ 40Hz - 200Hz
Frequency Range (-10dB)¹ 35Hz - 500Hz
Nominal Impedance 8Ω
Continuous Power Capacity 600W/2400W PEAK
Sensitivity (㏈ SPL, 1 W at 1 m) 99 dB
Recommended Power 1200W
Maximum Output,Continuous/Peak(dB 126.80dB /132.80dB
SPL at 1 m)
Enclosure Type Ported + Vented subwoofer rectangular type
Enclosure Material 2 x 12 mm birch plywood
Finish Available in black or White(Option), paintable
Grille Perforated, powder coated 16AWG steel,
Connectors For Amplifiers 2× Neutrik Speakon in parallel
Pins : 1+/1- SUB
Pins : 2+/2- NC
Attachment Points Integral, non-adjustable.straight array only
Weight (Net/Shipping) & Volume
Available Accessories B6015LMH: Array Frame/
P62LMIFF, P62LMIRR : Fly Grid plate/L09LM: Locking Pin
B62LMU: ground-stacked "U" frame/
SPM-35130 speaker pole
*Specifications subject to change without notice.
